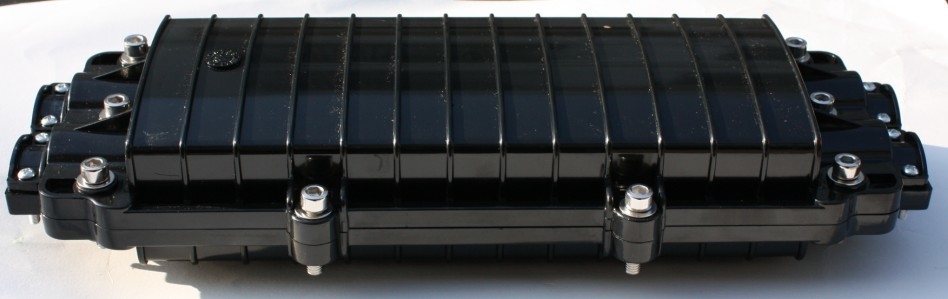

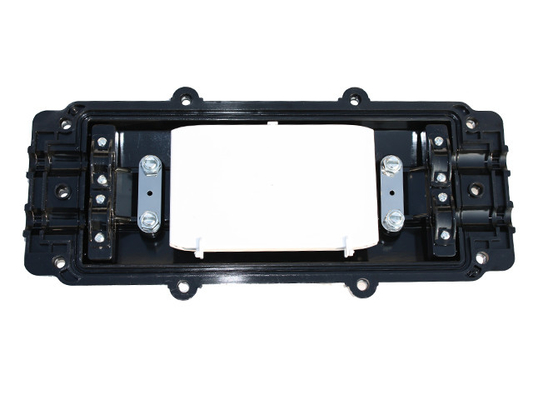

fiber optic splice closure
Product Details:
| Place of Origin: |
china |
| Brand Name: |
sunway |
| Certification: |
ISO9002 |
| Model Number: |
SW-09-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Packaging Details: |
normal |
| Payment Terms: |
T/T,L/C |
| Supply Ability: |
1000000 |
Contact Now
Detailed Product Description
Products Imformation:
Maximum capacity:48
Seal way: Silica gel
The use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
Does not require special tools, easy to install and open the duplicate.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting,
The application of temperature :-40℃～65℃
Model Parameters:
| Type |
09-20 Fiber Optic Splice Closure |
| Product outlook size |
380*175*80 |
| Product material quality |
PC(Polycarbonate) |
| Product weight |
Approximately1.5kg |
| Suitable Dia of cable |
8-20mm |
| Fibers/Tray |
12 Or24 |
| Max capacity(F) |
48 |
